GS 20 GOLD SERIES PORTABLE AUGERS

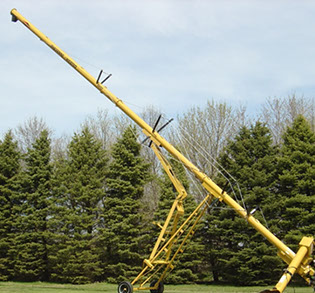

GOLD SERIES PORTABLE AUGER







Designed with a choice of four different drive system, the Gold Series Auger provides maximum versatility and ease of operation. Engineered as a quality grain handling system, it easily moves high volumes of grain. Two models are available - the GS15 (without hanger bearings) and the GS20 (with hanger bearings).



All Gold Series augers have the following features:



» Double tapered bearing intake

» Hex Shaft

» Completely powder coated

» Hanger bearing access doors every 10'

» Extra heavy duty gear box

» Extra heavy duty double roller track

» Oil bath head drive

» Hardwood bearings on line shaft

» Welded angle ring tube connections

» 30° flexible rubber down spout

» Heavy duty tow hitch

» Heavy duty cable winch



IN STOCK!

SPECIFICATIONS

AUGER SIZE

8"

10"

13"

TUBE

12 gauge

12 gauge

12 gauge

FLIGHTING THICKNESS

3/16"

1/4"

1/4"

CAPACITY (BUSHELS PER HOUR)

1,800-3,800*

3,800-5,000*

7,000-10,000*

RPM

400-500

400-500

400-500

*Based on dry grain

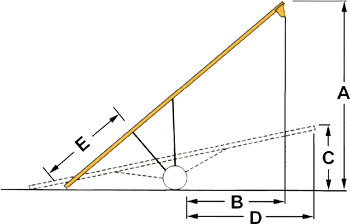

AUGER LENGTH

30'

40'

50'

56'

60'

70'

A

19'2"

25'10"

33'4"

37'2"

40'6"

48'6"

B

9'

13'6"

15'

16'3"

19'8"

23'5"

C

10'2"

11'6"

12'6"

13'

13'

13'8"

D

12'

14'10"

20'4"

22'10"

26'2"

31'1"

E

9'3"

12'1"

14'11"

15'9"

15'9"

20'4"

AXLE WIDTH

6'3"

7'8"

7'10"

8'6"

9'2"

10'6"

HP 8" ELECTRIC

5

7.5

7.5

7.5

10

10

HP 10" ELECTRIC

7.5

10

N/A

N/A

15

20

HP 13" ELECTRIC

10

16

16

N/A

N/A

N/A

AUGERS

PART NUMBER

DESCRIPTION

Shielded PTO Shaft with shear pin protection. Transport saddle for PTO shaft is provided on all units. Reversible gearbox to allow for operation on either side.

100-0-2702

100-0-2703

100-0-2704

100-0-2744

100-0-2705

100-0-2722

100-0-2723

100-0-2724

100-0-2746

100-0-2725

100-0-2707

100-0-2708

100-0-2710



100-0-2711

100-0-2728

100-0-2729

100-0-2710

100-0-2711

100-0-2771

100-0-2772

100-0-2778

100-0-2787

100-0-2774

GS15 8" X 30' PTO DRIVE

GS15 8" X 40' PTO DRIVE

GS15 8" X 50' PTO DRIVE

GS15 8" X 56' PTO DRIVE

GS15 8" X 60' PTO DRIVE

GS20 8" X 30' PTO DRIVE

GS20 8" X 40' PTO DRIVE

GS20 8" X 50' PTO DRIVE

GS20 8" X 56' PTO DRIVE

GS20 8" X 60' PTO DRIVE

GS15 10" X 30' PTO DRIVE

GS15 10" X 40' PTO DRIVE

GS15 10" X 60' PTO DRIVE

GS15 10" X 70' PTO DRIVE

GS20 10" X 30' PTO DRIVE

GS20 10" X 40' PTO DRIVE

GS20 10" X 60' PTO DRIVE

GS20 10" X 70' PTO DRIVE

GS20 13" X 30' PTO DRIVE

GS20 13" X 40' PTO DRIVE

GS20 13" X 50' PTO DRIVE

GS20 13" X 60' PTO DRIVE

GS20 13" X 70' PTO DRIVE

WEIGHT

930#

1235#

1450#

1700#

1905#

930#

1235#

1450#

1700#

1905#

1260#

1620#

2840#

2840#

1260#

1620#

2470#

2840#

1756#

2342#

2928#

3513#

4316#

8" - 30' to 50' augers have a double groove pulley and belt, require a 4" to 4 1/2" motor pulley for 1725 RPM motor. All other augers have a triple belt and require 4 1/2" to 5" motor pulley for 1725 RPM motor.



10" - 30' to 50' augers have a triple groove pulley and belt, require a 4" to 4 1/2" motor pulley for 1725 RPM motor. All other augers have a triple belt and require 4 1/2" to 5" motor pulley for 1725 RPM motor.

100-0-2712

100-0-2713

100-0-2714

100-0-2743

100-0-2715

100-0-2733

100-0-2734

100-0-2735

100-0-2745

100-0-2736

100-0-2717

100-0-2718

100-0-2720

100-0-2721

100-0-2738

100-0-2739

100-0-2741

100-0-2742

100-0-2779

100-0-3010

100-0-2783

GS15 8" x 30' ETM DRIVE

GS15 8" X 40' ETM DRIVE

GS15 8" X 50' ETM DRIVE

GS15 8" X 56' ETM DRIVE

GS15 8" X 60' ETM DRIVE

GS20 8" X 30' ETM DRIVE

GS20 8" X 40' ETM DRIVE

GS20 8"X 50' ETM DRIVE

GS20 8" X 56' ETM DRIVE

GS20 8" X 60' ETM DRIVE

GS15 10" X 30' ETM DRIVE

GS15 10" X 40' ETM DRIVE

GS15 10" X 60' ETM DRIVE

GS15 10" X 70' ETM DRIVE

GS20 10" X 30' ETM DRIVE

GS20 10" X 40' ETM DRIVE

GS20 10" X 60' ETM DRIVE

GS20 10" X 70' ETM DRIVE

GS20 13" X 30' ETM DRIVE

GS20 13" X 40' ETM DRIVE

GS20 13" X 50' ETM DRIVE

930#

1235#

1450#

1700#

1905#

930#

1235#

1450#

1700#

1905#

1260#

1620#

2470#

2840#

1260#

1620#

2840#

2840#

1756#

2342#

2928#

Double belt and pulleys. Shielded PTO shaft with shear pin protection with shaft size to match auger diameter and length.

100-0-2756

100-0-2757

100-0-2762

100-0-2763

GS15 8" X 40' BELT DRIVE PTO

GS15 8" X 50' BELT DRIVE PTO

GS20 8" X 40' BELT DRIVE PTO

GS20 8" X 50' BELT DRIVE PTO

1235#

1450#

1235#

1450#

Double groove pulleys and belts (less engine pulley). Recommended 4" pulley for gas engine at 2400 RPM and 5" double groove pulley for 1750 RPM electric motor.

100-0-2758

100-0-2759

100-0-2760

100-0-2764

100-0-2765

100-0-2767

100-0-2758

GS15 8" X 30' LOW GAS DRIVE (Less Engine)

GS15 8" X 40' LOW GAS DRIVE (Less Engine)

GS15 8" X 50' LOW GAS DRIVE (Less Engine)

GS20 8" X 30' LOW GAS DRIVE (Less Engine)

GS20 8" X 40' LOW GAS DRIVE (Less Engine)

GS20 8" X 50' LOW GAS DRIVE (Less Engine)

GS20 8" X 30' HYDRAULIC DRIVE

930#

1235#

1450#

930#

1235#

1450#

730#

Custom sizes available on other 8", 10" & 13"

Accessories for Gold Series Augers

WINCHES





PART-NUMBER

Add:                          100-1-0758

Deduct:                     905-12083

Deduct:                     905-12084

DESCRIPTION

Hydraulic Winch

K-1550 (Fits all 8" & 10" 30'-40'; uniits)

K-2550 (Fits all 10" 60'-70'; units)

WEIGHT

75#

15#

24#

HOPPERS & FLEX SPOUTS

PART-NUMBER

DESCRIPTION

WEIGHT

905-22006                                                                         Round Plastic Hopper                                                                  35#

905-22005                                                                         V-Shape Plastic Hopper                                                               16#

100-2-0668                                                                        3' Bucket Type Flex Spout 7-8" x 44"                                           10#

100-2-0670                                                                        3' Bucket Type Flex Spout 10" x 44"                                            15#

100-1-0746                                                                        Battery Box & Cables                                                                   14#



OPTIONAL ADJUSTABLE AXLE

GOLD SERIES 60' & 70' AUGERS

PART-NUMBER

DESCRIPTION

WEIGHT

Add:                          100-2-2708                                        Adjustable Axle                                                                            195#

Deduct:                     100-2-2707                                        Standard Axle for 60' & 70' Augers                                              80#

ARC WHEELS

PART-NUMBER

DESCRIPTION

WEIGHT

100-2-2841                                                                        Swivel Arc Walking Tandem                                                          288#

TIRES

PART-NUMBER

DESCRIPTION

WEIGHT

905-09070                                                                          (1) 9.5L X 15" New Implement Tire

905-09114                                                                          (1) New L78 x 15" Auto Tire

905-09115                                                                          (1) Used Auto Tire

40#

35#

30#

ULTRA LOW PROFILE JUMP AUGER

PART-NUMBER

DESCRIPTION

WEIGHT

100-0-4680                                                                         8"  Ultra Low-Profile Hopper, Electric Drive* (Less Motor)

100-0-4681                                                                         8"  Ultra Low-Profile Hopper, Hydraulic Drive** (Less Motor)

100-0-4682                                                                         10" Ultra Low-Profile Hopper, Electric Drive* (Less Motor)

100-0-4683                                                                         10" Ultra Low-Profile Hopper, Hydraulic Drive** (Less Motor)

904-05003                                                                          Hydraulic Motor for above



NOTE: Other hopper tube lengths available upon request up to 12 feet.

*Electric motor drives include motor mounting base, 1 1/2 double groove pulley, belts and belt shield. Not included is the motor or motor pulley. Recommended motor pulley is 3" to 3 1/2"  double grove.

**Hydraulic drive is less motor and hoses. Tractor should provide 10-12 GPM at 1500 PSI to operate the hopper at full capacity. To achieve maximum performance on the hopper run unity

between 400-500RPM.

300#

295#

370#

365#

13#
