SUMP PUMPS

MODEL # ESP25

•Pumps Up To 3300 GPH @ 0'

•Reinforced, Corrosion-Resistant, Thermoplastic Battery Back-Up Sump Pump System

•Reliable Reed Float Switch For Automatic Operation

•Professional Grade Back-Up System Keeps Battery Properly Charged - Requires One 40 Amp Hr Or 75 Amp Hr Deep Cycle Battery (Sold Separately)

•Alarm System, With Status Indicator Lights, Lets Homeowner Know When Back-Up System Is Active

•Designed for Easy Installation Without Any Major Plumbing Changes



MODEL # PTU30

•Pumps Up To 3200 GPH @ 0'

•Reinforced, Corrosion-Resistant Thermoplastic Pedestal Sump Pump

•Adjustable Vertical Float Switch Allows For Easy Changes In Operating Cycle To Fit Application

•Top Suction Design Filters Debris and Minimizes Clogging

•Designed for Easy Installation Without Any Plumbing Changes

•High Performance 1/3 HP Motor

•Corrosion Resistant Reinforced Thermoplastic Construction

•1-1/2" NPT Discharge And Thermoplastic Base

•Will Replace Most Submersible Sumps Without Any Plumbing Changes

•Designed For 14” Diameter Or Larger Sump Basins



MODEL # CDU1000

•Pumps Up To 5400 GPH

•Durable, Cast Iron and Stainless Steel Submersible Sump Pump

•Vertical Float Switch For Automatic Operation

•Top Suction Design Filters Debris and Minimizes Clogging

•Designed For Easy Installation Without Any Plumbing Changes

•Stainless Steel, High Performance 1 HP Motor

•1-1/2" NPT Discharge and Durable Cast-Iron Base

•Float Guard Protects Switch From Hang-Ups

•Designed for 11” Diameter or Larger Sump Basins

•Approximate On Level @ 9” - Off Level @ 4”





MODEL # CDT50

•Pumps Up To 4200 GPH @ 0'

•Durable, Cast-Iron Submersible Sump Pump

•Piggy-Back Tether Float Switch For Automatic Or Manual Operation

•Top Suction Design Filters Debris and Minimizes Clogging

•Designed For Easy Installation Without Any Plumbing Changes

•Epoxy-Coated Steel, High Performance 1/2 HP Motor

•1-1/2" NPT Discharge and Durable Cast-Iron Base

•Designed For 14” Diameter Or Larger Sump Basins

•Approximate On Level @ 13” - Off Level @ 7”



MODEL # CDU800

•Pumps Up To 4200 GPH @ 0'

•Durable, Cast-Iron Submersible Sump Pump

•Vertical Float Switch For Automatic Operation

•Top Suction Design Filters Debris and Minimizes Clogging

•Designed For Easy Installation Without Any Plumbing Changes

•Epoxy-Coated Steel, High Performance 1/2 HP Motor

•1-1/2" NPT Discharge and Durable Cast-Iron Base

•Float Guard Protects Switch From Hang-Ups

•Designed For 11” Diameter Or Larger Sump Basins

•1/2 HP Motor Rated 10 Amps

•Approximate On Level @ 9” - Off Level @ 4”



MODEL # CDU790

•Pumps Up To 3800 GPH @ 0'

•Durable, Cast-Iron Submersible Sump Pump

•Vertical Float Switch For Automatic Operation

•Top Suction Design Filters Debris and Minimizes Clogging

•Designed For Easy Installation Without Any Plumbing Changes

•Epoxy-Coated Steel, High Performance 1/3 HP Motor

•1-1/2" NPT Discharge and Durable Cast-Iron Base

•Float Guard Protects Switch From Hang-Ups

•Designed For 11” Diameter Or Larger Sump Basins

•1/3 HP Motor Rated 9.5 Amps

•Approximate On Level @ 9” - Off Level @ 4”



MODEL # CDU980E

•Pumps Up To 4600 GPH @ 0'

•Durable, Cast Iron and Stainless Steel Submersible Sump Pump

•Vertical Float Switch For Automatic Operation

•Top Suction Design Filters Debris and Minimizes Clogging

•Designed For Easy Installation Without Any Plumbing Changes

•Stainless Steel, High Performance 3/4 HP Motor

•1-1/2" NPT Discharge and Durable Cast-Iron Base

•Float Guard Protects Switch From Hang-Ups

•3/4 HP Motor Rated 10 Amps

•Designed for 11” Diameter or Larger Sump Basins

•Approximate On Level @ 9” - Off Level @ 4”



MODEL # SPT50

•Pumps Up To 3900 GPH

•Reinforced, Corrosion-Resistant Thermoplastic Submersible Sump Pump

•Piggy-Back Tether Float Switch For Automatic Or Manual Operation

•Top Suction Design Filters Debris and Minimizes Clogging

•Designed For Easy Installation Without Any Plumbing Changes

•Epoxy-Coated Steel, High Performance 1/2 HP Motor

•1-1/2" NPT Discharge and Reinforced Thermoplastic Base

•Designed For 14” Diameter Or Larger Sump Basins

•Approximate On Level @ 13” - Off Level @ 7”



MODEL # SPF33

•Pumps Up To 3600 GPH @ 0'

•Reinforced, Corrosion-Resistant Thermoplastic Submersible Sump Pump

•Vertical Float Switch For Automatic Operation

•Top Suction Design Filters Debris and Minimizes Clogging

•Designed For Easy Installation Without Any Plumbing Changes

•Float Guard Protects Switch From Hang-Ups

•Epoxy-Coated Steel, High Performance 1/3 HP Motor

•1-1/2" NPT Discharge and Reinforced Thermoplastic Base

•Designed For 11” Diameter Or Larger Sump Basins

•Approximate On Level @ 9” - Off Level @ 4”



WELL PUMPS

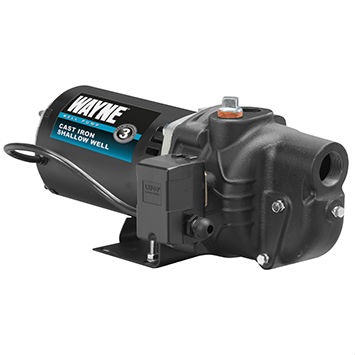

MODEL # SWS75

•Pumps Up To 468 Gallons Per Hour @ 5 ft. Depth - (50 PSI)

•For Wells 0 ft. - 25 ft. In Depth

•Dual Voltage (120/240) High Efficiency Square Flange Motor

(Factory Wired For 120 Volts)

•3/4 in. NPT Discharge With 1¼ in. Suction

•Pressure Switch Is Pre-Set At 30-50 PSI For Automatic Operation

•Dedicated Priming Port For Volute Filling

•Durable Cast Iron Volute



SEWAGE PUMPS

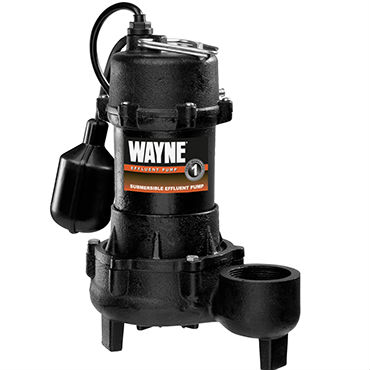

MODEL # EFL30

•Pumps Up To 3900 GPH @ 0’

•Durable, Cast Iron Submersible Effluent Pump

•Piggy-Back Tether Float Switch For Automatic Or Manual Operation

•2” NPT Discharge Capable Of Handling 3/4” Solids

•Designed For Easy Installation Without Any Plumbing Changes

•Easy Carry Ring For Portability

•Upper Ball Bearings For Quiet Operation

•Designed For Domestic Septic Tank And Gray Water Applications

•Designed For 18” Diameter Or Larger Basins

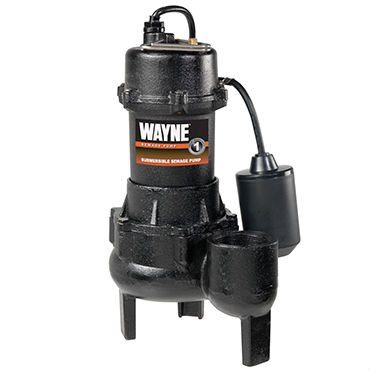

MODEL # RPP50

•Pumps Up To 5700 GPH @ 0’

•Durable, Cast Iron Submersible Sewage Pump

•Piggy-Back Tether Float Switch For Automatic Or Manual Operation

•2" NPT Discharge Capable Of Handling 2" Solids

•Designed For Easy Installation Without Any Plumbing Changes

•Easy Carry Ring For Portability

•Lower Ball Bearings For Quiet Operation

•Ideal For Basement Or Below Grade Installations

•Designed For 18” Diameter Or Larger Sewage Basins



LAWN PUMPS

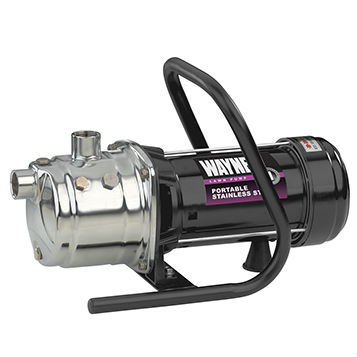

MODEL # PLS100

•Pumps Up To 720 GPH @ 0'

•Portable, Stainless Steel

•Fan-Cooled, Continuous-Duty 115 Volt Motor Draws Water Up To 20'

•1" NPT Suction/Discharge With 3/4" Garden Hose Adapter Included

•Safe And Convenient On/Off Switch

•180' Of Total Dynamic Head

•Maintains Pressure Up To 70 PSI

•Easy Carry Handle For Portability



ACCESSORIES

Line Check Valves

MODEL # 15591-WYN1

•1" Well Size



Bronze Foot Valve

MODEL # 15266-WYN1

•Precision machined, one-piece, cast bronze body with one-piece poppet and high-quality spring Foot valves feature perforated brass strainer



Jet Pump Repair Kit

MODEL # 56874-002

High Water Alarm

MODEL # 66032-WYN1

•Electronic Water Sensor

•90-Day Warranty



1-1/2 in. Check Valve

MODEL # 66005-WYN1

•1-1/2 in. Pump Thread With 1-1/4 in. or 1-1/2 in. Pipe Connection

•90-Day Warranty



1-1/4" Valve Kit

MODEL # 57028-001

•Same As 57027-001 Plus Inline Installation Kit. Requires Reducer

•90-Day Warranty



1-1/4" X 24' Sump Pump Flexible Discharge Hose Kit

MODEL # 56171

•90 Day Warranty



PC4 Brush Kit

MODEL # 56397

•90-Day Warranty
